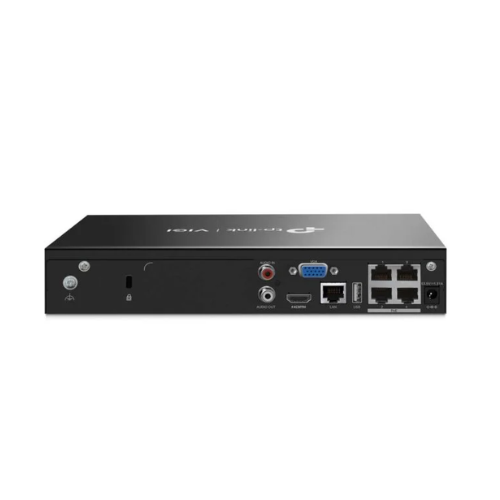

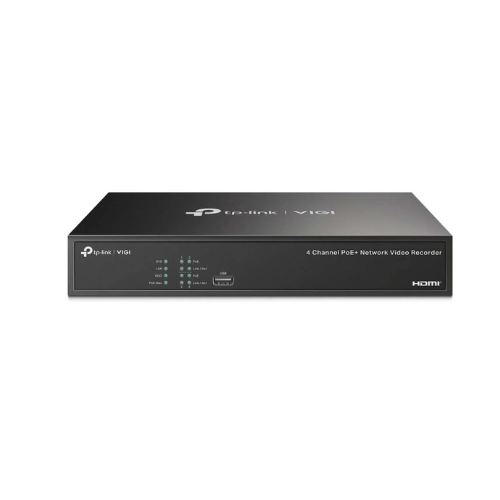

Viewtech VG-NVR1004H-4P VIGI 4CH

VIGI NVR1004H-4P – 4-Channel PoE+ Network Video Recorder

The VIGI NVR1004H-4P is designed for small surveillance setups needing a simple, reliable recording solution.

It supports 4 PoE+ cameras with 4K video output and efficient H.265+ compression.

Overview

• 4 PoE+ channels with 53W total power budget

• HDMI 4K and VGA simultaneous outputs

• H.265+ compression to save storage and bandwidth

• 80 Mbps incoming / 60 Mbps outgoing bandwidth

• Synchronous 4-channel playback

• ONVIF support for third-party cameras

• Remote access via VIGI app or web interface

Key features

• 4 × PoE+ ports (IEEE 802.3af/at)

• Recording/decoding: 2-ch @ 8MP or 4-ch @ 4MP (25 fps)

• Supports multiple resolutions: 8MP, 5MP, 4MP, 3MP, 1080p, 720p

• Auto Initialize for quick camera setup

• Compact, easy-to-install design

In the box

• 1 × VIGI NVR1004H-4P recorder

• 1 × Power adapter with cables

• Screws and HDD mounting accessories

• USB mouse for local control

• Quick start guide
